Luna 8 / 16

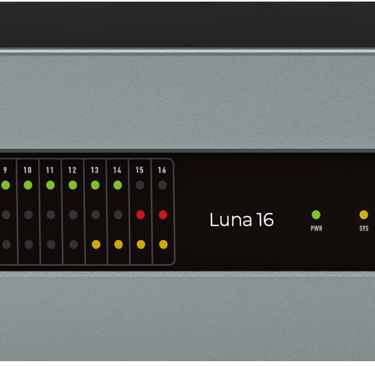

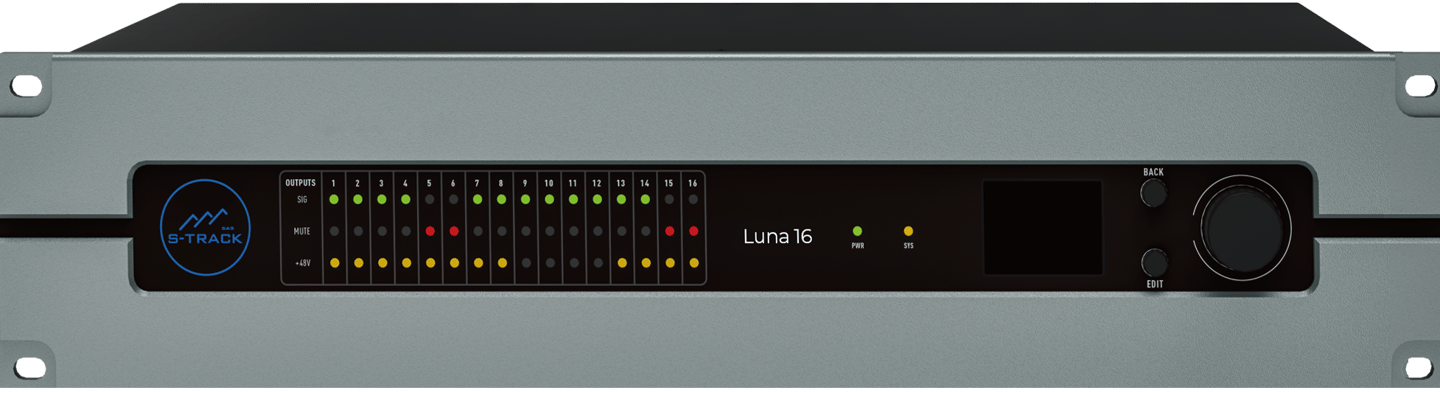

The Luna 8 and Luna 16 are high-density networked audio interfaces designed for demanding broadcast and production environments. Available in 8×8 and 16×16 channel configurations, the units feature premium mic preamps with per-channel phantom power, line-level balanced outputs, and ultra-high-resolution sample rate conversion for pristine interoperability across digital domains. Both models support Dante Primary and Secondary networks and are fully compatible with Dante, SMPTE ST 2110, and AES67 workflows. An isolated Ethernet control network allows remote configuration, while front-panel controls and an LED display enable fast access to IP settings and I/O adjustments. Engineered for mission-critical audio transport, the Luna 8 and Luna 16 deliver transparent signal path performance with resilient network redundancy.

Features

  • Available in 8×8 or 16×16 I/O channel configurations

  • Ultra-high-resolution sample rate conversion for transparent digital interoperability

  • 8 or 16 balanced XLR mic inputs with studio-grade preamps

  • 8 or 16 balanced XLR line-level outputs for flexible routing

  • Per-channel 48V phantom power for condenser microphones

  • Dante Primary & Secondary network interfaces for redundant audio transport

  • Fully compatible with Dante, SMPTE ST 2110, and AES67

  • Isolated and assignable Ethernet control network for secure remote configuration

  • Front-panel LED display for network configuration and I/O management

  • Designed for broadcast, production, corporate AV, and critical live workflows

Specifications
